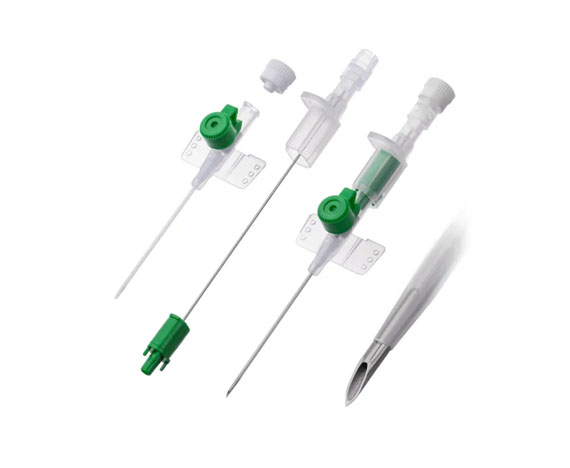

JB FLON I.V. Cannula / Catheter with Wings & Iniection Port
Product Code: JB0101
These IV cannulas are fitted with an injection port that allows the supplementation of a drug into the cannula itself by a syringe without a needle, and prevents back-flow. The color-coded cap can be standard or « flip top » (snapcap) which allows a rapid one-finger closure. The flexible wings provide easy and proper fixation with fixation tapes.
- Stainless steel, silicone tipped needle for smooth penetration.
- Injection port with one way silicone injection valve.
- Specially designed protective cap with a recessed plug to cover the injection port and minimize contamination.
- Angled and grooved wings for secure fixation.
- Radio-opaque lines for accurate radiographic detection.
- Luer cap for blocking the catheter when not in use.
- 6% luer taper for compatibility with all standard devices.
- Disposable, sterile and non-pyrogenic.
Technical
Specifications

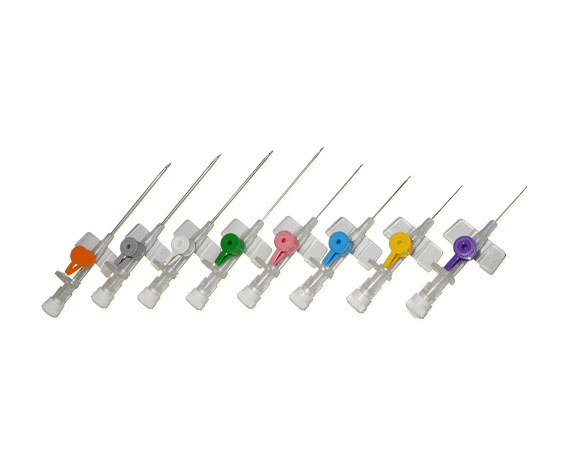

| Gauge | Colour | IN. Ext. (in mm) | Length (in mm) | Water flow (in mm) |
|---|---|---|---|---|
| 14 | Orange | 1.6–2.1 | 45 | 270 |
| 16 | Grey | 1.3–1.7 | 45 | 180 |
| 17 | White | 1.2–1.5 | 45 | 125 |
| 18 | Green | 0.9–1.3 | 45 | 90 |
| 18 | Green | 0.9–1.3 | 33 | 90 |
| 20 | Pink | 0.8–1.1 | 32 | 60 |
| 22 | Blue | 0.6–0.9 | 25 | 36 |
| 24 | Yellow | 0.5–0.7 | 19 | 20 |
| 26 | Violet | 0.4–0.6 | 19 | 13 |
